dbt Integration

How to use PipeRider with dbt
Data transformations are an integral part of the modern data stack. Through PipeRider's integration with dbt, you can run data quality checks against your transformed data and ELT pipeline. PipeRider auto-detects your dbt data warehouse settings, so no extra configuration is required.
This guide demonstrates how to use PipeRider with a dbt project by using dbt’s Jaffle Shop repository as an example. In this guide you will do the following:

1. Configure the Jaffle Shop project

dbt Labs provide the Jaffle Shop project as a way to quickly get up and running with a dbt project. This project also serves as a convenient example to demonstrate how to use PipeRider inside a non-production dbt project.
Follow the ‘Running this project’ instructions in the Jaffle shop repository to install and configure the dbt project.
Once configured, or if you already have a dbt project you want to use, proceed to step #2.

2. Install and add PipeRider to the Jaffle Shop project

PipeRider supports many data sources through connectors. For a full list, please refer to Supported Data Sources.

Install PipeRider

Install PipeRider with the required connector for the data source you used to configure the Jaffle Shop project in step #1.
For example, to install PipeRider with the Snowflake connector, you would use the following command:
pip install -U 'piperider[snowflake]'

Initialize PipeRider

Ensure you are inside the Jaffle Shop project directory, and then run the following command to initialize a new PipeRider project.
piperider init
PipeRider will auto-detect the dbt project settings and display the contents of your PipeRider configuration file, located at .piperider/config.yml
$ piperider init
Initialize piperider to path /path/to/jaffle-shop/.piperider
[ DBT ] Use the existing dbt project file: /path/to/jaffle-shop/dbt_project.yml
────────────────────────────────────────────── .piperider/config.yml ───────────────────────────────────────────────
1 dataSources:
2 - name: jaffle_shop
3 type: postgres
4 dbt:
5 profile: jaffle_shop
6 target: dev
7 projectDir: .
8
9 profiler:
10 # table:
11 # # the maximum row count to profile. (Default unlimited)
12 # limit: 1000000
13 # duplicateRows: false
14
15 # The tables to include/exclude
16 # includes: []
17 # excludes: []
18
19 # tables:
20 # my-table-name:
21 # # description of the table
22 # description: "this is a table description"
23 # columns:
24 # my-col-name:
25 # # description of the column
26 # description: "this is a column description"
27
28 telemetry:
29 id: abc123
30
Next step:
Please execute command 'piperider diagnose' to verify configuration
See config.yml for details of available settings

Verify PipeRider configuration

Ensure that PipeRider can connect to the data source by running the diagnose command.
piperider diagnose
$ piperider diagnose
Diagnosing...
PipeRider Version: 0.14.0
Check config files:
/path/to/jaffle-shop/.piperider/config.yml: [OK]
✅ PASS
Check format of data sources:
jaffle_shop: [OK]
✅ PASS
Check connections:
DBT: postgres > jaffle_shop > dev [OK]
Name: jaffle_shop
Type: postgres
connector: [OK]
Available Tables: ['raw_customers', 'orders', 'raw_orders', 'raw_payments', 'customers']
Connection: [OK]
✅ PASS
Check assertion files:
✅ PASS
🎉 You are all set!
Next step:
Please execute command 'piperider run' to generate your first report
If everything is configured corrected you’ll see the 'You are all set!’ message.

3. Run PipeRider to generate a data profile report

Run PipeRider to profile the data source and create your first HTML report:
piperider run
PipeRider will profile the available tables and output the link for the HTML report.
$ piperider run
DataSource: jaffle_shop
──────────────────────────────────────────────────── Validating ────────────────────────────────────────────────────
everything is OK.
──────────────────────────────────────────────────── Profiling ─────────────────────────────────────────────────────
Fetch metadata ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 5/5 0:00:00
[1/5] raw_customers ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 3/3 0:00:00
[2/5] raw_payments ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 4/4 0:00:00
[3/5] customers ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 7/7 0:00:00
[4/5] orders ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 9/9 0:00:00
[5/5] raw_orders ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 4/4 0:00:00
───────────────────────────────────────────────────── Summary ──────────────────────────────────────────────────────
Table Name #Columns Profiled #Tests Executed #Tests Failed
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
raw_customers 3 0 0
raw_payments 4 0 0
customers 7 0 0
orders 9 0 0
raw_orders 4 0 0
Generating reports from: /path/to/jaffle-shop/.piperider/outputs/latest/run.json
Report generated in /path/to/jaffle-shop/.piperider/outputs/latest/index.html
Next step:
Please execute command 'piperider run' to generate your second report
The report contains detailed data profile metrics for each of the profiled tables.

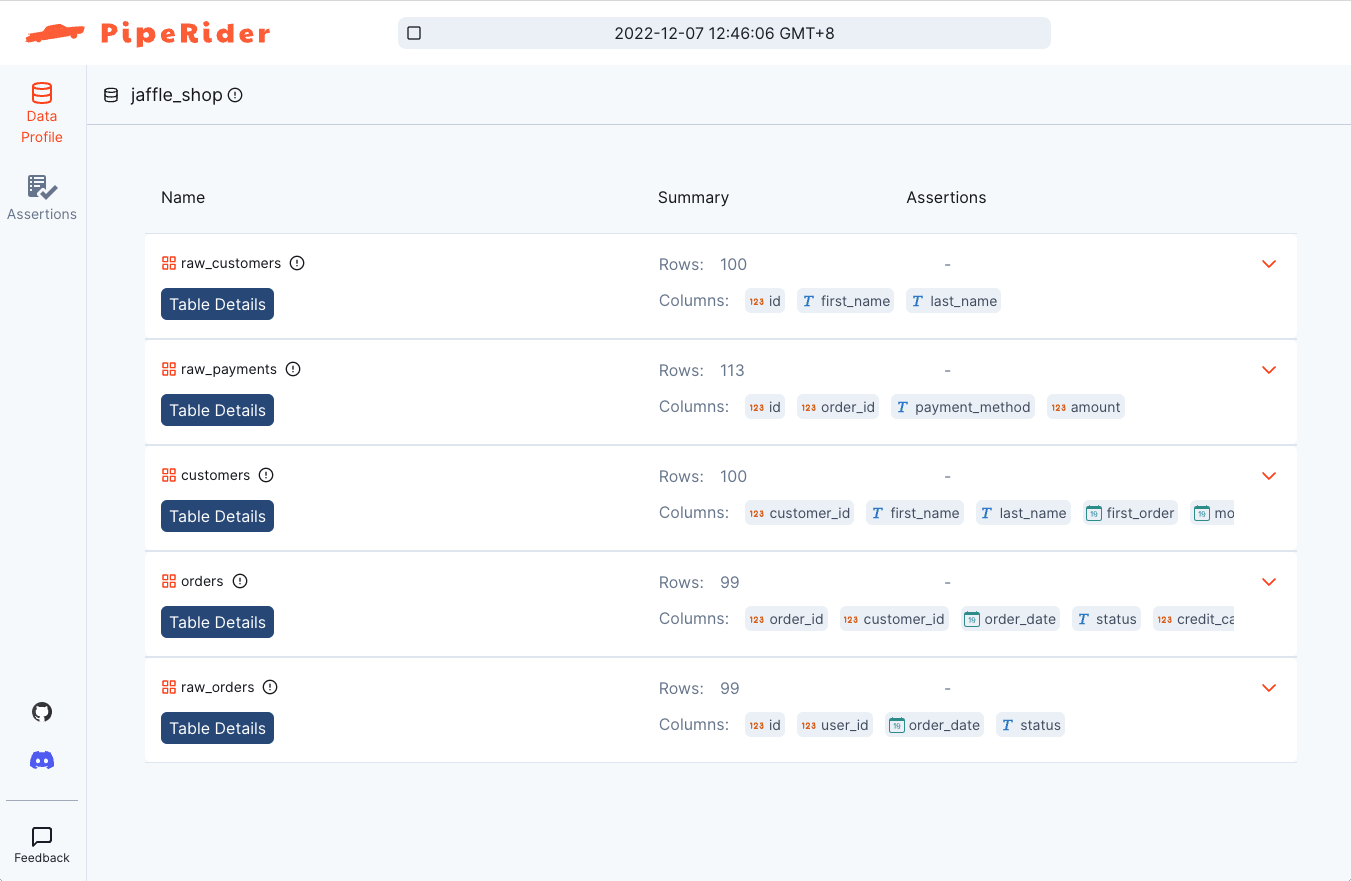

PipeRider Jaffle Shop Report Overview

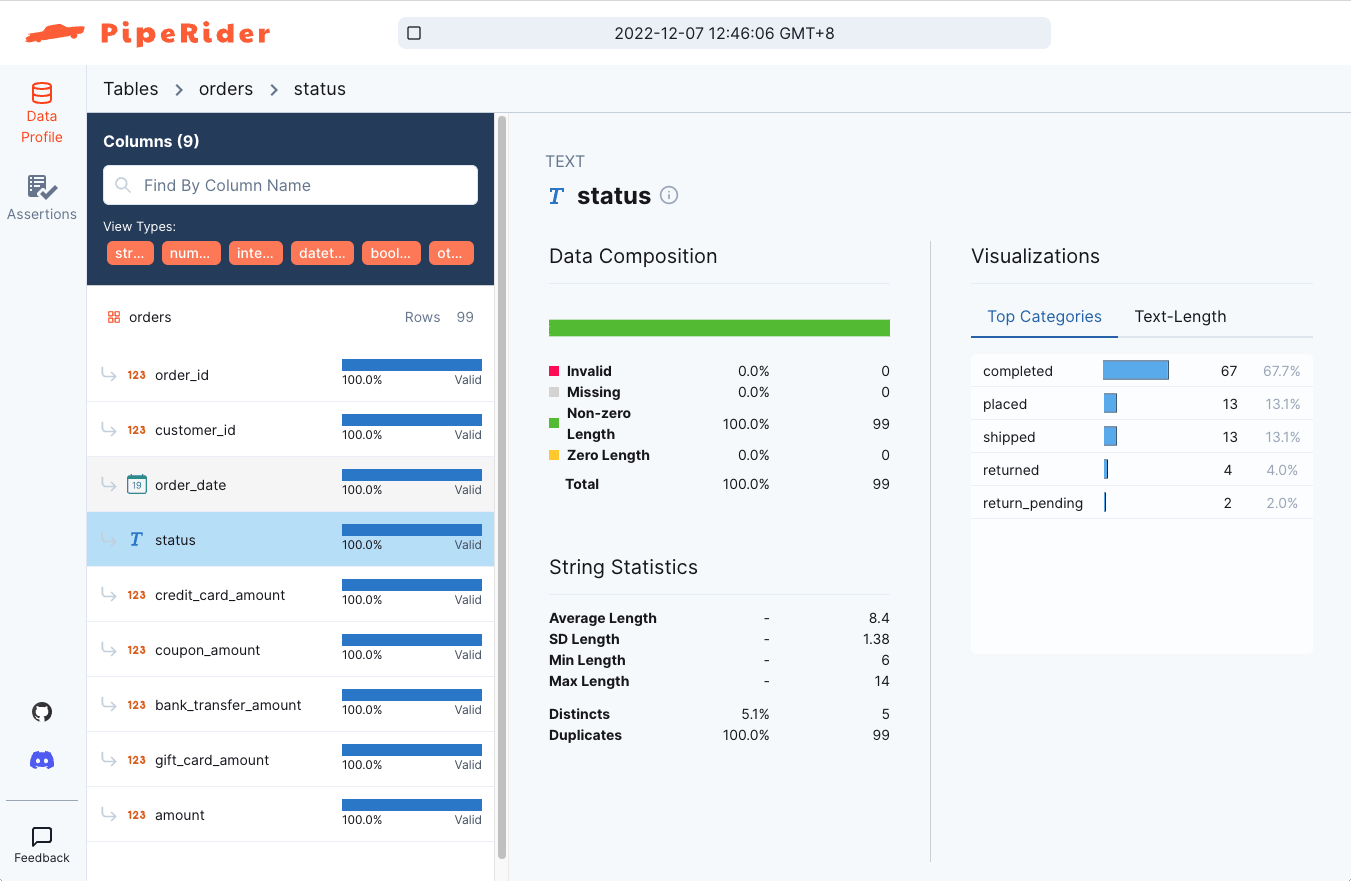

PipeRider Jaffle Shop Data Profile Sample

4. Use dbt node selection with PipeRider

PipeRider supports profiling and testing dbt 'state', so it’s possible to use node selection to build and then run PipeRider on a subset of resources.

Build a subset of resources

Use dbt node selection to select and build a sub-set of resources.
dbt build -s raw_orders+
dbt will seed, build, and test the raw_orders table and any children.

Run PipeRider on the dbt state

Run PipeRider again, this time specifying the location of the dbt state (the default folder for dbt artifacts is target).
piperider run --dbt-state target
PipeRider will now only run on the raw_orders table, and the two child models, customers and orders.
$ piperider run --dbt-state target
DataSource: jaffle_shop
─────────────────────────────────────────────────── Validating ───────────────────────────────────────────────────
everything is OK.
─────────────────────────────────────────────────── Profiling ────────────────────────────────────────────────────
Fetch metadata ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 3/3 0:00:00
[1/3] raw_orders ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 4/4 0:00:00
[2/3] customers ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 7/7 0:00:00
[3/3] orders ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 9/9 0:00:00
─────────────────────────────────────────────── Assertion Results ────────────────────────────────────────────────
────────────────────────────────────────────────────── dbt ───────────────────────────────────────────────────────
Status Test Subject Assertion Message
────────────────────────────────────────────────────────────────────────────────────────────────────────────────
[ OK ] stg_orders.status accepted_values_stg_orders_status__placed__shipped__comple…
[ OK ] stg_orders.order_id not_null_stg_orders_order_id
[ OK ] stg_orders.order_id unique_stg_orders_order_id
[ OK ] customers.customer_id not_null_customers_customer_id
[ OK ] customers.customer_id unique_customers_customer_id
[ OK ] orders.status accepted_values_orders_status__placed__shipped__completed_…
[ OK ] orders.amount not_null_orders_amount
[ OK ] orders.bank_transfer_amount not_null_orders_bank_transfer_amount
[ OK ] orders.coupon_amount not_null_orders_coupon_amount
[ OK ] orders.credit_card_amount not_null_orders_credit_card_amount
[ OK ] orders.customer_id not_null_orders_customer_id
[ OK ] orders.gift_card_amount not_null_orders_gift_card_amount
[ OK ] orders.order_id not_null_orders_order_id
[ OK ] customers.customer_id relationships_orders_customer_id__customer_id__ref_custome…
[ OK ] orders.order_id unique_orders_order_id
──────────────────────────────────────────────────── Summary ─────────────────────────────────────────────────────
────────────────────────────────────────────────────── dbt ───────────────────────────────────────────────────────
Table Name #DBT Tests Executed #DBT Tests Failed
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
stg_orders 3 0
customers 3 0
orders 9 0
─────────────────────────────────────────────────── PipeRider ────────────────────────────────────────────────────
Table Name #Columns Profiled #Tests Executed #Tests Failed
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
raw_orders 4 0 0
customers 7 0 0
orders 9 0 0
Generating reports from: /path/to/jaffle-shop/.piperider/outputs/latest/run.json
Report generated in /path/to/jaffle-shop/.piperider/outputs/latest/index.html

View report and dbt test results

The resulting report contains the data profile for the three resources on the node we specified in the last step.

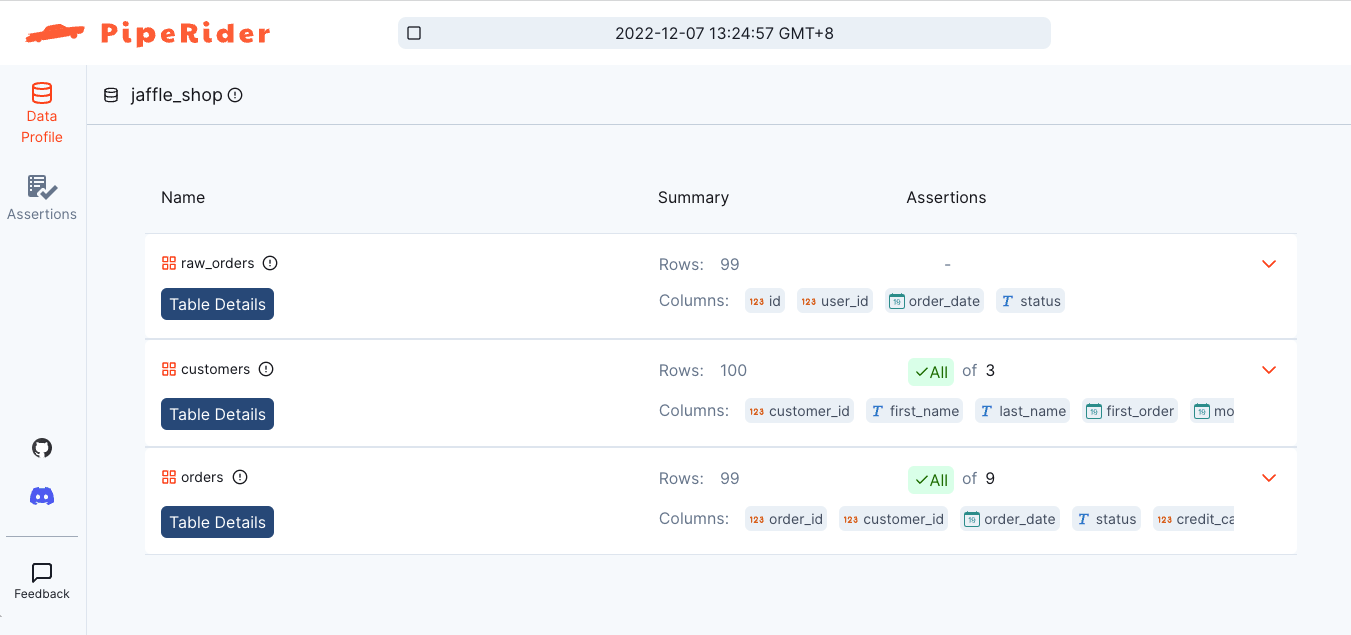

PipeRider Report based on dbt State
The Assertions tab also contains the dbt test results.

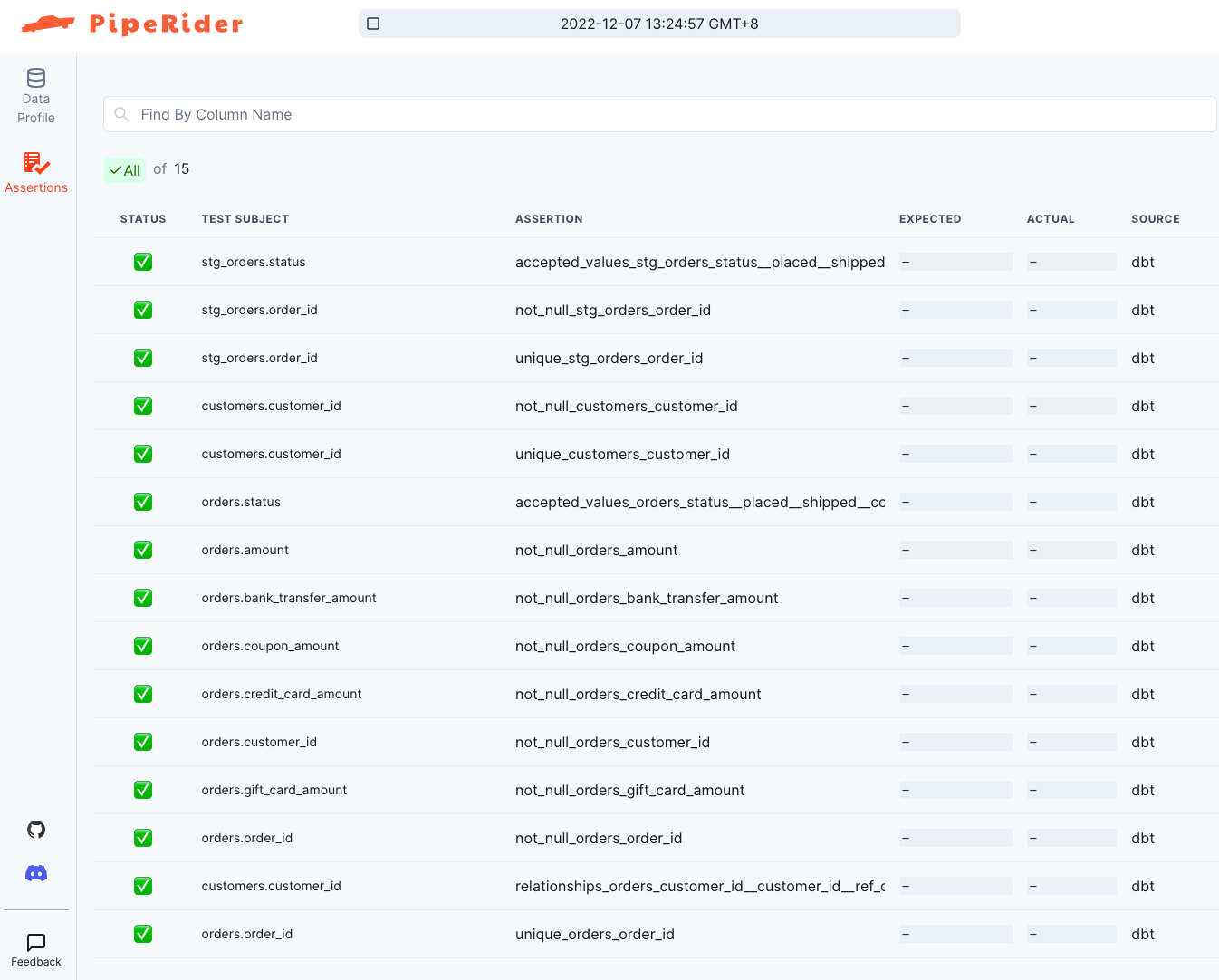

PipeRider Report with dbt Test Results

5. Next step: Data assertions

In addition to showing dbt test results on the PipeRider report, PipeRider also features its own suite of data assertions.
To save time writing data assertions from scratch, you can use the generate-assertions command to auto-generate assertions based on the current state of the data.
Use the following command to generate assertions for your project:
piperider generate-assertions
Assertion files are stored in .piperider/assertions and are named according to table. If the generate-assertions command was used, assertion files will be prepended with recommended_.

Edit assertions

If you ran PipeRider now, the assertions would all pass, so we'll first make a change to one of the assertions.
The customers model has some entries for customers without any orders. These rows have null values in the order related columns. Let's pretend that we only wanted customers who had actually placed an order to appear in this table, so we can add an assertion to alert us if any customers have zero (null) orders.
Open .piperider/recommended_customers.yml in your text editor.
Find the number_of_orders table, it should look like this:
number_of_orders:
tests:
- name: assert_column_schema_type
assert:
schema_type: BIGINT
tags:
- RECOMMENDED
Add a new test to assert that this column must not be null:
number_of_orders:
tests:
- name: assert_column_schema_type
assert:
schema_type: BIGINT
tags:
- RECOMMENDED
- name: assert_column_not_null
Save the file.

Run PipeRider

Now that you have edited the assertions to better meet your needs, run PipeRider again.
piperider run --dbt-state target
This time, because assertion files exist, PipeRider will profile the data source and test it against the data assertions we edited in the last step.
The generated report will show the failed assertion at the top.

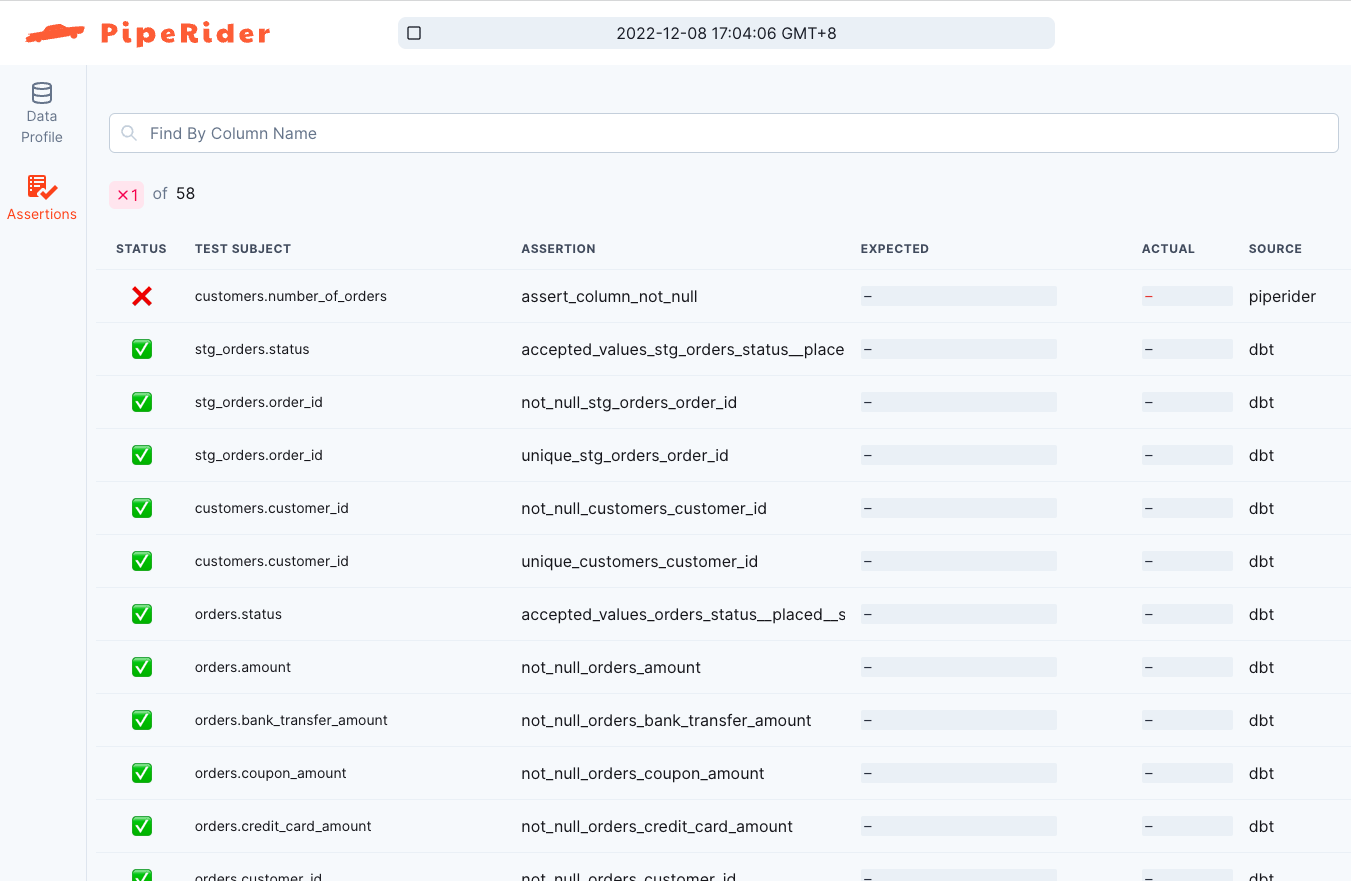

PipeRider Report with Failed Assertion
Check the Data Quality Assertions section for more information on PipeRider's suite of data assertions.
